When an Elevation Survey Is Needed Before Raising Mechanical Equipment
Flood damage to a building gets attention. Damage to the equipment usually doesn’t.
Not until it’s underwater.
Air handlers, electrical panels, and generators below flood level get destroyed in a storm. Replacing them costs tens of thousands of dollars. In many cases, they didn’t need to be there. The owner just never checked.
An elevation survey shows where mechanical equipment sits compared to the flood level for that parcel. That number drives the decision to raise the equipment. In West Palm Beach, getting this wrong means insurance penalties, permit problems, or another flood loss.

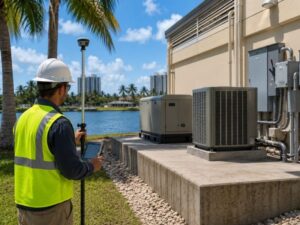

What an Elevation Survey Records on a Building
An elevation survey records the height of points on a building. For mechanical equipment, it records:
- The elevation of the lowest floor
- The elevation of the bottom of the lowest mechanical equipment
- The elevation of electrical panels, HVAC systems, and generators
- The top-of-slab elevation at the equipment location
- The ground elevation around the building
All of these get compared to the Base Flood Elevation (BFE). The BFE comes from the FEMA Flood Insurance Rate Map for that parcel. The comparison shows which equipment is above BFE and which is below.
That data goes into an Elevation Certificate. FEMA, lenders, and insurance companies use it to set flood insurance rates. They also use it to confirm that a building meets local flood rules.
Why West Palm Beach Owners and Developers Need This Data First
Palm Beach County has many parcels in FEMA Special Flood Hazard Areas. Those areas include Zones AE, AH, and VE. Buildings in those zones must follow NFIP rules and Palm Beach County’s local flood ordinance.
NFIP Rules That Connect Equipment Elevation to Insurance Cost
The NFIP sets flood insurance premiums based partly on how equipment compares to BFE. Equipment placed below BFE means higher premiums. Equipment raised to or above BFE can lower premiums.
The NFIP uses Elevation Certificates to calculate those differences. Without a current elevation survey, your insurance agent works with estimates. Estimates in flood zones push premiums higher. They rarely push them lower.
Palm Beach County Flood Rules on Equipment Placement
Palm Beach County requires all electrical systems, HVAC equipment, and plumbing in new construction to be raised to or above BFE. This applies to buildings in flood zones.
It also applies to substantial improvements. That means any renovation where the cost equals or exceeds 50 percent of the building’s market value. Many owners don’t realize their renovation crosses that threshold. An elevation survey confirms whether the rule applies.
Permit Reviews That Require Accurate Elevation Numbers
West Palm Beach’s building department reviews elevation data for projects in flood zones. SFWMD permits sometimes include specific conditions about equipment elevations too.
If the numbers in your permit package don’t match actual site conditions, you get a revision or a failed inspection. An elevation survey done on the actual building confirms the numbers before they go into the permit.
Four Times You Need an Elevation Survey Before Raising Equipment
Adding New Mechanical Equipment to an Existing Building in a Flood Zone
New equipment in a flood zone must meet current flood rules. An elevation survey confirms where the existing equipment sits. It documents the proposed new location too. Your insurance carrier and building department will ask for an updated Elevation Certificate.
Renovating a Building That Crosses the Substantial Improvement Threshold
A renovation that meets Palm Beach County’s 50 percent threshold triggers full flood compliance for the whole building. That includes all mechanical systems. An elevation survey before the renovation starts shows which equipment is compliant and which needs to be raised.
Getting Insurance on a Building With No Elevation Certificate on File
Many older buildings in West Palm Beach don’t have a current Elevation Certificate. Those buildings get rated at FEMA’s default table rates. Default rates are almost always higher than documented buildings receive. A new elevation survey lets the insurance agent rate the policy on actual conditions.
New Construction Where Equipment Location Changed After the Foundation Was Poured
Equipment locations shift during construction. The permit drawings showed one spot. The installed position ended up somewhere else, sometimes lower. A final elevation survey after equipment is installed confirms what was actually built before the certificate of occupancy inspection.
Frequently Asked Questions
What is an elevation survey for mechanical equipment?
It records the height of mechanical equipment on a building. That height gets compared to the Base Flood Elevation. FEMA and Palm Beach County use that data for flood compliance and insurance rating.
When does Palm Beach County require mechanical equipment to be elevated?
It is required for new construction and substantial improvements in FEMA flood zones. All mechanical and electrical equipment must be at or above BFE. The substantial improvement threshold is 50 percent of the building’s pre-improvement value.
Can an elevation survey lower my flood insurance premium?
Yes. Buildings without a current Elevation Certificate get rated at NFIP default rates. Those rates are usually higher. A new elevation survey lets your insurer rate the policy on actual building conditions.
Who can perform an elevation survey in Florida?
Only a licensed PSM or a registered engineer can certify an Elevation Certificate. Check license status at the Florida DBPR website before hiring anyone.
How long does an elevation survey take in West Palm Beach?
Most surveys for small to mid-size commercial buildings take one to three business days. That covers the field visit and the completed Elevation Certificate. Larger sites take longer. Order early so it does not delay your permit or insurance timeline.
