Most yard drainage problems don’t start with heavy rain. They start with bad planning. A retaining wall goes in at the wrong height. A patio gets poured without checking the grade. A garden bed blocks the natural flow path. By the time water shows up where it shouldn’t, the work is already done. Topographic surveying should be done before any yard project shows exactly how water moves across the land. This is especially true where flat lots and heavy summer rain leave very little room for grade mistakes.

How the Survey Maps the Shape of Your Yard

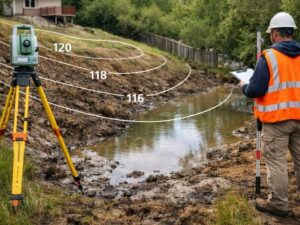

A topographic survey measures the height of the ground across a site. The surveyor records elevation points at set intervals. They also record key features like low spots, high points, swales and existing structures. Those points get plotted into a drawing that shows contour lines.

Contour lines connect points of equal elevation. Together they form a map of the land’s shape. The map shows where the ground rises, where it falls and where it levels off. It also shows where water is likely to go when it rains.

For yard work, this matters more than most property owners think. A slope that looks gentle can funnel a lot of water into one corner during a storm. A low area that seems minor on a dry day can hold standing water for days. The topographic survey makes those conditions visible before any digging starts.

Drainage Problems the Survey Catches Early

Low Areas That Collect Water

The survey finds depressions in the yard where water pools. Some are easy to see. Others are shallow and you’d never notice them until after a storm. In West Palm Beach, summer rainfall can exceed six inches in a single event. Even a small low spot can become a flooded zone.

Knowing where those areas are before grading or paving lets the designer drain them or route water away. Ignoring them means problems show up after the job is done.

Grade That Slopes Toward the House

One of the most common drainage mistakes is yard grade that pitches toward the foundation. Water that flows toward the house leads to moisture damage and long-term structural problems.

A topographic survey shows the direction of slope across the whole yard. If any section pitches the wrong way, the contractor can fix it in the design. Catching it early costs very little. Finding it after a finished patio or garden bed is already expensive.

Blocked or Redirected Flow Paths

Yards often have natural drainage paths and swales that move water off the property. Years of landscaping changes, added structures and informal fill can block those paths without anyone noticing.

The topographic survey maps existing swales and drainage features. It shows whether the site is draining correctly or trapping water on site. That information is critical before any new work changes the grade further.

Drainage Impact on Neighboring Properties

Palm Beach County has rules about how stormwater can leave a property. A yard project that changes the grade can push more water onto a neighbor’s lot. That creates a practical problem and a legal one.

A topographic survey done before the project shows the existing drainage pattern. Any proposed grading changes can be checked against that baseline. That way, the project doesn’t send more water onto adjacent properties than before.

Yard Projects That Need a Survey First

Not every project needs one. A small garden bed or minor refresh probably doesn’t. But several common projects carry real risk without one.

Retaining walls are one example. A retaining wall changes how water flows on a site. Build it in the wrong spot and you can trap water behind it or cause erosion below it.

Patios and hardscape are another. Paved surfaces shed water instead of absorbing it. Where that water goes depends on the surrounding grade. A topographic survey before the patio is designed shows whether the grade will carry runoff away safely.

Pool installations almost always need one. The excavation changes the site grade. So does the pool deck. Getting drainage right from the start avoids problems after the project is done.

Large grading or fill projects need one too. Any project that moves a lot of soil needs elevation data before work begins. Without it, contractors are guessing at how the finished grade will behave.

How the Survey Data Gets Used in the Design

The topographic survey drawing gives the designer or contractor a factual starting point. Instead of working from how the yard looks from eye level, they work from measured elevations.

A designer can use the data to set finished grades that direct water away from the house. An engineer can use it to size drainage structures correctly. A contractor can use it to set elevation benchmarks during construction.

The survey also creates a record of existing conditions. If a drainage dispute comes up later, there’s documentation of what the site looked like before any work was done.

Frequently Asked Questions

Why Is a Topographic Survey Important for Drainage Planning?

A topographic survey measures ground elevations and reveals how water naturally flows across a property. This information helps designers create grading plans that direct runoff away from structures and reduce the risk of drainage problems.

When Is the Best Time to Schedule a Topographic Survey?

A topographic survey is most useful before projects that involve grading, excavation, patios, retaining walls, pools, or other improvements that may affect drainage. Smaller cosmetic landscaping projects typically do not require one.

Can a Topographic Survey Help Prevent Standing Water Problems?

Yes. By identifying low areas and existing drainage patterns, a topographic survey provides the information needed to address potential water issues before construction begins. This can help avoid costly corrections after the project is completed.

How Does a Topographic Survey Differ From a Boundary Survey?

A boundary survey establishes property lines, while a topographic survey focuses on elevations and surface features. Some projects benefit from both surveys, especially when setback requirements and drainage design must be considered together.

Are Topographic Surveys Required for Certain Yard Improvement Projects?

Some projects may require grading or drainage plans as part of the permitting process. Even when a survey is not mandatory, topographic data can help property owners make informed decisions and reduce the likelihood of future drainage issues.
