How a Topographic Survey Helps Builders Plan Around Fill, Slope, and Standing Water

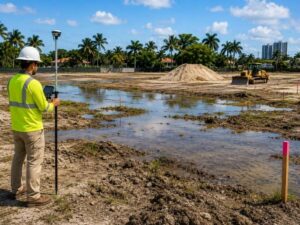

Building on flat land sounds easy. In South Florida, it’s anything but.
West Palm Beach sits just a few feet above sea level. Rain floods low spots fast. Soil holds water for days. And fill placed years ago doesn’t always drain the way it should.
A topographic survey maps all of that before a shovel hits the ground. It shows builders exactly where the land rises, where it dips, where water pools, and where fill was added. Without that data, grading decisions are guesswork. Grading guesses in Palm Beach County get expensive fast.
What a Topographic Survey Shows That a Boundary Survey Doesn’t
A boundary survey shows where a property begins and ends. A site elevation survey, often completed as part of a topographic survey, shows what the land actually looks like between those boundaries. It records changes in elevation, drainage patterns, and other surface features that engineers need before designing a project.
A topographic survey records:
- Ground elevation at measured points across the entire site
- Contour lines showing how the land rises and falls
- Existing structures, trees, fences, and utilities above ground
- Drainage features like swales, ditches, and retention areas
- Changes in surface material, such as where soil shifts to fill or rock
The result is a detailed elevation map. Architects and engineers use it to design grading plans, drainage systems, and finished floor elevations that match the actual ground conditions.
Why West Palm Beach Sites Need Topographic Data Before Design Starts
West Palm Beach has specific ground conditions that make topographic data more important than in many other markets.
Fill Placed Decades Ago That Didn’t Get Documented
Much of Palm Beach County was developed by filling low-lying land in the 1960s through 1980s. Some of that fill was placed without formal documentation. It may be uneven, may have settled over time, and may not drain at the same rate as surrounding native soil. A topographic survey combined with a soil investigation shows where fill exists, how deep it runs, and whether it affects your foundation design.
Standing Water That Shows Up After Every Rain
Palm Beach County gets roughly 63 inches of rain per year, most of it between June and September. Sites that appear dry in winter can hold standing water for days after summer storms. A topographic survey captures existing drainage patterns. Your civil engineer uses that data to route runoff away from the building footprint and toward compliant discharge points before the design is final.
Elevation Differences That Affect Finished Floor Requirements
South Florida Water Management District (SFWMD) and Palm Beach County have finished floor elevation requirements for new construction. Those requirements are based partly on the Base Flood Elevation (BFE) for the parcel and partly on the surrounding ground conditions. A topographic survey confirms the actual ground elevation at your building footprint. That number goes into your finished floor elevation calculation. Getting it wrong means a stop-work order or a redesign after permits are pulled.
Three Design Decisions a Topographic Survey Directly Informs
Where to Set the Finished Floor Elevation
Finished floor elevation is one of the first decisions a builder makes on a new project. Set it too low and the structure sits in a flood risk zone. Set it too high and fill costs increase fast. A topographic survey gives the civil engineer real elevation data across the site so the finished floor elevation gets set correctly the first time.
How Much Fill the Site Actually Needs
Fill quantities drive a big part of site preparation costs. Many developers estimate fill based on flat maps or general elevation data. Those estimates are often wrong. A topographic survey measures actual ground elevations across a grid of points. Your engineer uses that data to calculate cut and fill volumes accurately. That number goes into your budget and your grading contractor’s bid before any work starts.
Where the Drainage System Needs to Go
Palm Beach County requires a stormwater management plan for most new construction. That plan has to show how water moves on and off the site. A topographic survey provides the base elevation data the civil engineer needs to design swales, retention areas, and outfall structures that actually work. Without accurate topo data, stormwater system designs are based on assumptions. Assumptions cost money when they’re wrong.
Planning Ahead With a Topographic Survey
Order one before the civil engineer starts design work. That’s the short answer.
Many developers order a boundary survey first, then start design, then order topo later when the engineer asks for it. That sequence wastes time. The civil engineer needs topo data to start most of the design work that matters. Having both surveys ordered at the same time cuts weeks off the pre-construction schedule.
Order a topographic survey when:
- The site has visible grade changes, low spots, or areas that hold water after rain
- Any part of the parcel is in or near a FEMA Special Flood Hazard Area
- The project requires a stormwater management plan for Palm Beach County permitting
- The site has undocumented fill or previous development that may have altered drainage patterns
- The project involves a detention pond, swale, or outfall structure as part of the drainage design
Frequently Asked Questions
What is a topographic survey?
A topographic survey records ground elevations across a property and shows how the land rises and falls. It produces an elevation map with contour lines, existing structures, drainage features, and surface conditions. Architects and civil engineers use it to design grading plans, drainage systems, and finished floor elevations for new construction.
How is a topographic survey different from a boundary survey?
A boundary survey shows the legal limits of a property. A topographic survey shows the physical shape of the ground inside those limits. Most construction projects need both. The boundary survey establishes the legal lines. The topographic survey gives engineers the elevation data they need to design the site.
When does Palm Beach County require a topographic survey?
Palm Beach County and SFWMD require accurate topographic data to support stormwater management permit applications for most new construction disturbing more than one acre. Your civil engineer will also require topo data to design grading plans, set finished floor elevations, and size detention and drainage systems. Order it before design starts.
How accurate does a topographic survey need to be for construction in West Palm Beach?
For most construction and permitting purposes in Palm Beach County, topographic surveys are conducted to an accuracy of 0.1 feet (about 1.2 inches) vertically. SFWMD and county drainage design typically require spot elevations at intervals of 25 to 50 feet across the site. Your civil engineer will specify the density and accuracy required for your project.
Can I use existing aerial or GIS elevation data instead of a topographic survey?
Aerial and GIS elevation data, such as LIDAR data from the Florida Division of Emergency Management, provides a general picture of ground elevation. It’s useful for initial screening but not accurate enough for design or permitting. Vertical accuracy for public LIDAR datasets in Florida is typically 15 to 30 centimeters. A site-specific topographic survey by a licensed PSM provides the accuracy level needed for stormwater permits, grading design, and finished floor elevation calculations.
