Getting a fence installed seems simple. Pick a style, hire a contractor, done. But skipping a survey for fence installation is one of the most common reasons homeowners end up tearing out brand new fencing and starting over. The cost of rework almost always exceeds the cost of the survey that would have prevented it.

Why Fence Contractors Rely on What They Can See

Most fence contractors work from what’s visible on the ground. They follow existing fences, tree lines or the edge of a lawn.

None of those things are legal property lines.

A neighbor’s old fence could be sitting two feet inside your lot. A lawn edge is just where someone decided to stop mowing. These are guesses, not measurements. When a contractor builds from guesses, the fence ends up in the wrong place.

That mistake doesn’t stay quiet. Neighbors notice. Permit offices catch it. And fixing it means pulling out posts, buying new materials and paying for labor a second time.

How a Boundary Survey Shows the Actual Property Line

A boundary survey identifies the exact legal boundary of a property. A licensed surveyor reviews recorded deeds and plat documents, then confirms the boundary in the field with precise measurements.

The result is a marked line. The contractor builds to that line. There’s no guessing.

This matters because property lines don’t always follow what looks obvious on the ground. A lot can be narrower on one side than the other. Corners can angle in unexpected directions. Without a survey, these surprises show up after the fence is already in the ground.

Getting the survey done before the contractor starts eliminates that risk entirely.

What Happens When a Fence Gets Built in the Wrong Place

A fence built over the property line creates several problems at once.

The neighbor has the legal right to ask for it to be removed. In many cases, they don’t ask nicely. If the dispute reaches code enforcement or a court, the homeowner is responsible for the full cost of removal and reinstallation.

Permit offices also check fence placement. Many municipalities require that fences be set back a certain distance from the property line. A fence that fails that check gets flagged. The permit gets denied or a correction order gets issued.

Either way, the homeowner pays twice. Once for the original installation and again for the fix.

Why Permit Applications Often Require a Survey for Fence Work

Many local building departments require a site plan or survey document as part of a fence permit application. They want to see where the property lines are and where the fence will be placed relative to those lines.

Submitting a permit application without that documentation usually results in one of two outcomes. The application gets rejected and the homeowner has to get a survey before resubmitting. Or the fence gets built without a permit, which creates its own set of problems when the property is later sold or refinanced.

Getting a boundary survey for fence installation before applying for the permit keeps the process moving. It also protects the homeowner if the placement is ever questioned later.

How Easements Affect Where a Fence Can Legally Be Built

A property can have easements that restrict where permanent structures can be placed. Utility easements, drainage easements and access easements are all common in residential areas.

Fences built inside an easement area can be ordered removed at the homeowner’s expense. The utility company or government entity that holds the easement doesn’t need to compensate the homeowner for the loss.

What to Expect From a Boundary Survey for Fence Installation

The process is straightforward. A licensed surveyor pulls the recorded documents for the property and reviews the legal description. They then go to the site and confirm the boundary locations using field measurements.

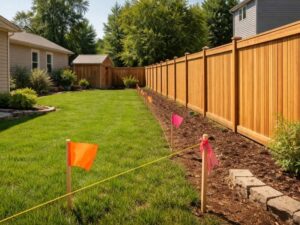

At the end of the process, the boundary is marked with stakes or flagging. Some surveyors also provide a written document or sketch showing the boundary relative to existing features.

That documentation becomes the contractor’s guide. It also becomes a record that the fence was built on accurate information, which is useful if a dispute comes up later.

The survey doesn’t take long for a standard residential lot. The time it saves by preventing rework is much longer.

Frequently Asked Questions

Do I need a boundary survey for fence installation if I already have a survey on file?

An older survey may be acceptable in some cases. It depends on how old it is, whether any changes have occurred on the property and what the local permit office requires. A licensed surveyor can review the existing document and advise whether it’s current enough to rely on for a new fence installation.

Can my fence contractor find the property line without a survey?

Contractors are not licensed to locate property boundaries. They can find existing markers if they’re visible, but they can’t confirm those markers are accurate or locate boundaries that aren’t already marked on the ground. Only a licensed land surveyor can establish a legal boundary location.

How much does a boundary survey for fence installation typically cost?

Survey costs vary based on lot size, location and complexity. A standard residential boundary survey for fence purposes is generally less expensive than a full survey for a major construction project. The cost is almost always less than the expense of removing and reinstalling a fence that was built in the wrong place.

What if my neighbor disputes where the survey places the property line?

A survey completed by a licensed surveyor is based on recorded legal documents and field measurements. If a neighbor disagrees, they would need to commission their own survey to challenge the findings. Disputes are resolved by comparing the two surveys and the underlying documentation.

Does a survey for fence work protect me legally?

Yes. A survey documents that the fence was placed based on the legal boundary as determined by a licensed professional. If a dispute arises later, that documentation shows the fence placement was based on accurate information. It’s one of the more straightforward ways to protect a property investment from a future boundary challenge.
