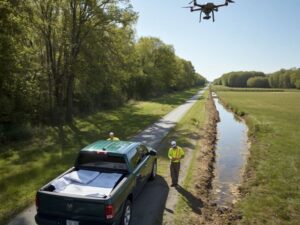

Drone land surveying covers a long stretch of proposed roadway in one flight. A ground crew would need days to walk the same corridor and take the same number of measurements. For developers planning a private road extension in West Palm Beach, that speed changes how early you can start real engineering work. This guide covers what a road extension project needs from a survey. It also covers how drones capture that corridor differently, and where the limits still sit.

What Goes Into Planning a Private Road Extension

A private road extension isn’t just pavement. It needs grade data along the entire route. It needs drainage checks at every low point. It also needs a clear picture of anything sitting in the way of construction.

The route also carries legal weight. Roads often cross land tied to multiple easements or shared access agreements. Someone has to confirm who holds rights along that corridor before construction starts.

Getting all of this data through a ground crew alone takes time. A road extension can run for hundreds of feet, cutting across varied terrain the whole way. That length is where drone surveying starts to pull ahead of a walking crew.

Flying the Full Corridor Instead of Walking It

A road extension is a long, narrow shape. Ground crews measuring this kind of site have to walk the full length, taking point measurements as they go. A drone flies the same corridor in one pass. It captures continuous elevation data along the entire route, not scattered points chosen by a crew.

This matters most on longer extensions. A road stretching several hundred feet through wooded or uneven land takes a ground crew much longer to measure by hand. A drone captures the same distance quickly. Engineers get a complete elevation profile before design work even starts.

Grade and Water: Reading the Route Before You Pave

Roads need consistent grade for safe driving and proper drainage. A drone survey shows the natural slope along the entire proposed path. This helps engineers spot where cuts or fill will be needed to keep the grade within acceptable limits.

Drainage matters just as much. Flat South Florida terrain means water can collect in unexpected low points along a road corridor. Drone elevation data reveals these spots before construction starts. Engineers can design culverts or swales at the right locations instead of discovering a drainage problem after paving is already done.

What’s Sitting in the Way of Construction

A proposed road route often crosses existing trees, drainage ditches, fences, or other structures. A drone survey documents all of this along the corridor in detail. This gives the design team a clear picture of what needs to move or get worked around.

This documentation also helps during permitting. Some obstacles, like protected trees or wetland buffers, come with regulatory requirements that affect how the road can be routed. Having this information early avoids a redesign after construction has already started.

Whose Land Does This Road Actually Cross

Private roads often cross land tied to multiple property owners, shared access agreements, or utility easements. A drone survey combined with recorded property data helps identify where the proposed route crosses these boundaries.

This step matters early in planning. A road that crosses an undocumented easement or an unresolved boundary line can stall a project at the permit stage. Catching this during the survey phase keeps the project on schedule, instead of catching it during construction when a fix costs far more.

Turning the Flight Into a Usable Plan: Step by Step

1. Schedule the drone flight during stable weather, since wind and rain reduce data accuracy along a long corridor.
2. Confirm the flight path covers the full proposed route, plus a buffer zone on either side for design flexibility.
3. Ask for the elevation data in a format your civil engineer can load directly into design software.
4. Cross-reference the drone data with recorded property and easement information for the full corridor.
5. Pair the drone survey with a ground check on any area needing certified boundary confirmation before construction.

The Parts of This Job a Drone Still Can’t Finish

Drone data covers ground fast, but it doesn’t replace every part of a road survey.

• Dense tree canopy can block a drone’s view of the ground beneath it, leaving gaps in the data in wooded sections of the corridor.
• Underground utilities don’t show up in aerial imagery, so existing utility maps or locating services still matter before construction begins.
• Legal boundary and easement confirmation also needs a licensed ground survey. A drone can show where a line likely sits, but only a certified survey confirms it for permit and legal purposes.

Drone surveying handles the large-scale terrain and obstacle mapping well. It still needs to work alongside traditional ground survey methods for anything requiring legal certification or underground detail.

Frequently Asked Questions

How long does a drone survey take for a private road extension?

Most private road corridors can be surveyed in a single flight session, weather permitting. Longer routes or challenging terrain may require additional flights, and processing the data takes extra time depending on the level of detail needed.

Can drone data replace a full engineering survey for a road extension?

No. Drone surveys provide detailed surface elevation and visible site information, but legal boundaries, easements, and underground utilities still require traditional surveying methods or existing utility records.

Does tree cover affect the accuracy of a drone survey along a road corridor?

Yes. Dense tree canopy can block the drone’s view of the ground, creating gaps in the collected data. These areas may require additional ground surveying to verify accurate elevations.

How does drone data help prevent drainage problems on a new road?

Drone survey data identifies natural low points, slopes, and drainage patterns along the proposed route. This allows engineers to design culverts, swales, and other drainage features before construction begins.

Can a drone survey identify easement conflicts along a proposed road?

A drone survey clearly shows existing site conditions, but identifying easement conflicts requires comparing the aerial data with recorded property information. A licensed surveyor can use both sources to identify potential conflicts before construction starts.
