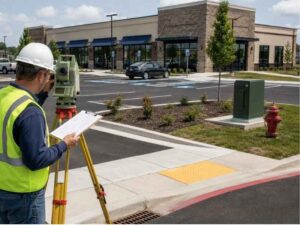

Construction plans show what a site is supposed to look like. They don’t always show what actually got built. That gap is why as built surveys matter once construction wraps up. They record the finished site as it stands, not as it was first drawn. This gives owners a real, measured picture of what they now own and have to take care of.

Record Parking, Drive Aisles, and Walkways

Once paving and striping are done, an as-built survey can record the finished parking spaces, accessible stalls, curb ramps, sidewalks, drive aisles, and walkways across the site. This isn’t about checking construction against the plans. It’s about making a measured record of the layout as it actually exists.

That record matters more than people think. Parking counts, accessible stall spots, and walking routes often come up again during leasing, code checks, or future site changes. With exact measurements on file, nobody has to walk the lot with a tape measure just to answer a simple question about how many spaces exist or where the walkways run.

This also helps when a property changes hands. A new owner or manager doesn’t have to guess at the layout or trust old photos. The measured record speaks for itself, and that saves confusion later.

Find Finished Drainage and Storm Water Parts

Drainage work goes in the ground and is easy to forget once the pavement covers it up. An as-built survey map catches basins, inlets, manholes, low spots for water, and other visible drainage parts after construction wraps up.

This map gives the owner a clear guide for checking, cleaning, and fixing these parts later. A drainage system only works if someone checks and clears it on a regular basis. That’s hard to do well if nobody has an accurate record of where everything sits. A finished survey turns guessing into a simple task.

Skipping this step tends to show up during the first heavy storm after construction. A blocked drain that nobody can find fast can turn a normal cleaning job into a flooded parking lot and an unhappy tenant.

Show Utility Gear and Service Hookups

Commercial sites end up with a lot of scattered gear. Transformers, meters, utility boxes, hydrants, cleanouts, and valves all get put in at different points during construction, often by different crews who never talk to each other.

An as-built survey pulls all of that into one shared site record. That one record becomes truly useful for facility work and any future upgrades, since nobody has to dig through separate contractor files just to find where a valve sits.

This shared record also helps when something breaks. A team fixing a problem can pull up one document instead of calling around to figure out who installed what and where.

Check That Fire Lanes Stay Open

Fire lanes and emergency routes need to stay clear once a site is in use, not just during building. An as-built survey can record these fire routes, turning areas, loading zones, and gates as they exist on the finished, working property.

This part isn’t about how the site got built. It’s about showing what access looks like now that tenants, deliveries, and daily traffic use the space. A clear record of these areas helps property managers keep them open. It also helps avoid problems if a fire lane ever gets blocked by parked cars or stored gear.

Fire lanes tend to slip out of line slowly, not all at once. A stack of boxes here, a delivery truck parked too long there, and soon the lane isn’t as clear as it should be. A record makes it easy to point to exactly what the space is supposed to look like.

Build a Final Site Record for Owners

Once everything above gets documented, the finished survey becomes part of the property’s lasting record. It supports upkeep planning, tenant changes, repairs, refinancing, and any future rebuilding down the road.

Owners should keep this final drawing with the approved plans and other closeout papers from the project. Years later, when a lender asks for site details or a tenant wants to make changes, having an accurate as-built survey on hand saves time. Otherwise, someone has to hunt down old records or measure something all over again.

Closeout paperwork tends to get scattered across different folders and different people over time. Keeping the survey with the rest of the closeout papers, in one clear spot, means it’s actually easy to find when someone needs it years down the road.

Frequently Asked Questions

What commercial improvements can appear on an as-built survey?

The scope can include parking areas, sidewalks, drainage parts, visible utilities, fire routes, loading areas, retaining walls, and any other finished site improvements the client asks for.

Is an as-built survey only needed at the end of construction?

It’s usually made near the end of a project, but some parts may need to get surveyed in stages if they’ll later be covered, changed, or hard to reach once the site is done.

Who uses the finished as-built survey?

Property owners, developers, engineers, facility managers, lenders, contractors, and reviewing offices may all use it, depending on the project and the survey scope that was agreed on.
